Metal Edges, inserts and VDS
Her you will find among other: Steel metal edges for skis and snowboard, snowboard M5 and M6 inserts, Titanal metal sheet for skis and snowbaord, VDS rubber and much more.
Showing all 13 results
-
M6 inserts snowboard/kiteboard
€0.65 – €0.75 "incl. VAT" Select options This product has multiple variants. The options may be chosen on the product pageM6 inserts snowboard/kiteboard
Ski, Snowboard and Kiteboard,Wakeboard M6 binding Inserts for DIY.
Quality snowboard and kiteboard inserts produced in EU. With cap, to prevent resin going in.
Kiteboard inserts: Nautic stainless steel A4 (AISI 316)
Magnetic tape also available in store!
The insert is M6 x 1 and is 6mm-10.5mm high. If you need it to be magnetic, you can put a magnetic tape on top.
Nautic stainless steel A4 ( AISI 316 ) which does not ever rust.
€0.65 – €0.75 "incl. VAT" -
Steel edges for skis and snowboard
€2.70 – €3.00 "incl. VAT" Select options This product has multiple variants. The options may be chosen on the product pageSteel edges for skis and snowboard
Skis and snowboard Steel edges. Steel metal edges, ready to be used. Sanded and primed.
For bending the edges we offer Edge bender Pro: https://www.junksupply.com/product/ski-snowboard-edge-bender-pro/
Read this before you apply: http://www.skibuilders.com/phpBB2/viewtopic.php?p=53321&hilit=cold+press#p53321
Choose between 0,9mm, 1.2mm, 1.5mm or 1.8mm step steel edges for base thickness 0,8mm-1.8mm respectively.
Top quality ski or snowboard steel edges from Austria. Sanded and primed, for epoxy use. Please use gloves at all time!
price is pr 1m! When ordering more then 1 m, we will send it in one piece, except on case you order also a wood core with 1.8mm or 1.5mm edges that can not be rolled to the dimensions accepted by GLS or DPD.
€2.70 – €3.00 "incl. VAT" -

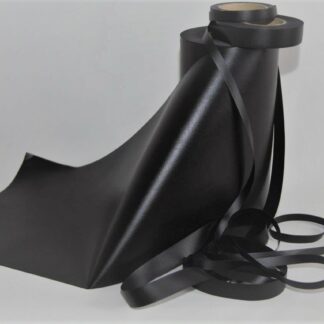

VDS rubber tape for skis and snowboard
€0.65 – €70.00 "incl. VAT" Select options This product has multiple variants. The options may be chosen on the product pageVDS rubber tape for skis and snowboard
VDS rubber Tape for skis and snowboard, with a function to…
…to compensate material
expansions/contractions caused by
temperature alteration
…to dampen or absorb vibrations
…to compensate material tolerances
…to avoid disruptions of the surface material
…to reduce acoustic noise in floor and wall
panels
…to fill up leaks in constructions which
improves the power transmission e.g. at
the ski composite to transmit the power over
the edges
…as backing material for the adhesion
…in composites exposed to a high level of
dynamic stress.VDS rubber foil is used in between the edges and the laminates, and possibly sidewalls and the laminate. Its purpose is to make sure that the layers stay together even when flexing and under tension.
We offer VDS Rubber ready to use in 13mm, 25mm or 300mm wide. Black or Yellowish
With 300-350mm wide VDS you can cover your full board or ski with VDS.
€0.65 – €70.00 "incl. VAT" -
Custom product via email
€1.00 "incl. VAT" Add to cart -
100% Alcohol Wipe
€0.30 "incl. VAT" Add to cart100% Alcohol Wipe
ON STOCK FROM 22.NOVEMBER 2023
100% Isopropyl Alcohol Wipes for cleaning your sidewalls and tip/tail fill insert material prior flaming for proper bond, or for cleaning your equipment from epoxy.
Wipeing your sidewalls or filler materials with alcohol will greatly improve the bound to the epoxy, and decrease the chance of delamination later on!
price is pr.1 piece.
Read more: https://www.junksupply.com/flaming-and-sanding-sidewalls-or-the-tip-filler-ptex/
€0.30 "incl. VAT" -
M5 Splitboard clips Insert 3.1mm – caped
€0.75 "incl. VAT" Add to cartM5 Splitboard clips Insert 3.1mm – caped
Quality inserts produced in EU.
Stainless steel insert for splitboard clips.For those who dont wish to drill thru the spitboard, rather embed the inserts in the board during lamination.
The insert is M5 x 1 and is 3.1mm.
It is capped with a see thru cap.
0.8mm threading
Magnetic tape also available in store.
€0.75 "incl. VAT" -
Titanal T6 0.4mm from AMAG
€3.00 "incl. VAT" Add to cartTitanal T6 0.4mm from AMAG
Titanal sheet for skis and snowboard.
Titanal T6 from AMAG.
Thickness is 0.4mm, Width is 310mm.
Price is pr 10cm length, you get one piece when you order more.
Se Below for instructions on how to use!
€3.00 "incl. VAT" -
Magnetic tape for insert 10x620mm
€2.00 "incl. VAT" Add to cartMagnetic tape for insert 10x620mm
NEW thinner tape!
This is a quality magnetic tape for use with our M6 inserts.
You can cut it in small pieces and attache it to the ‘hat’ or top of the inserts. This will help you find your insert during drilling. It is very helfull if your inserts are not visable due to carbon, graphics or similar.
0.5mm thick.
Price is pr. piece 10x620mm
€2.00 "incl. VAT" -
Cork material rubber sheet (500mm)
€12.00 "incl. VAT" Add to cartCork material rubber sheet (500mm)
Cork rubber material, ready to laminate. It is a rather durable and resiliant (an eco-friendlier) material that has amazing vibration and shock absorption capacities.
0,8mm thick. 500mm wide.
weight: 500mm x 500mm weighs about 200g.
Excellent to dampen the ride or to improve the durability or stiffness. Has various applications.
Applications: underfoot, see picture in the bottom. Tip and tail. Between edges and sidewalls for increased protection from blunt force impacts. To avoid rabbeting the core, you can put this material from edge to edge width wise. You can also go full width and length with it.
Material can be exposed on the side of the board/ski without water issues.
Price is pr. 0,5m. If you order more, it will be supplied in one piece.
€12.00 "incl. VAT" -
Printable A4 non woven
€2.00 "incl. VAT" Add to cartPrintable A4 non woven
Suitable for laser printers and photocopiers, these non-woven lets you design and print out your own ratings plates, safety labels and product large designs, easily and economically, without the urgent need to order large print runs.
White
Laminates well
Size: 210 x 297 mm
Thickness: 0.30 mm
Areal weight: 40 g/m²
€2.00 "incl. VAT" -
Adhesive fiberglass mesh 120mm wide
€1.00 "incl. VAT" Add to cartAdhesive fiberglass mesh 120mm wide
Adhesive fiberglass mesh for attaching tip/tail spacer/filler material or for aiding to attaching inserts.
120mm wide,
1m long
€1.00 "incl. VAT" -
Ski & snowboard edge bender Pro
€120.00 "incl. VAT" Add to cartSki & snowboard edge bender Pro
Ski and snowboard edge bending tool.
Edge bender for mounting on a vice. By having it on a vice, you can adjust any radius you like.
This edge bender can bend edges in 2 dimensions, for the base and for the tip/tail. See below for more info and pictures on the bottom.
Fits edges step 1.2-1.8mm
suggested mounting distance between the 2 smaller wheels: 62mm (center).
€120.00 "incl. VAT" -
Union splitboard clips (full set)
€60.00 "incl. VAT" Add to cartUnion splitboard clips (full set)
Splitboard clips, full set.
Integrated type, you need 3.1mm M5 inserts too.
The Union Clips and Hooks are simple and easy to assemble.
These clips are a full set and come with all needed screws and assembly.
€60.00 "incl. VAT"
Showing all 13 results
