Snowboard DIY Bamboo package kit

295.00360.00 "incl. VAT"

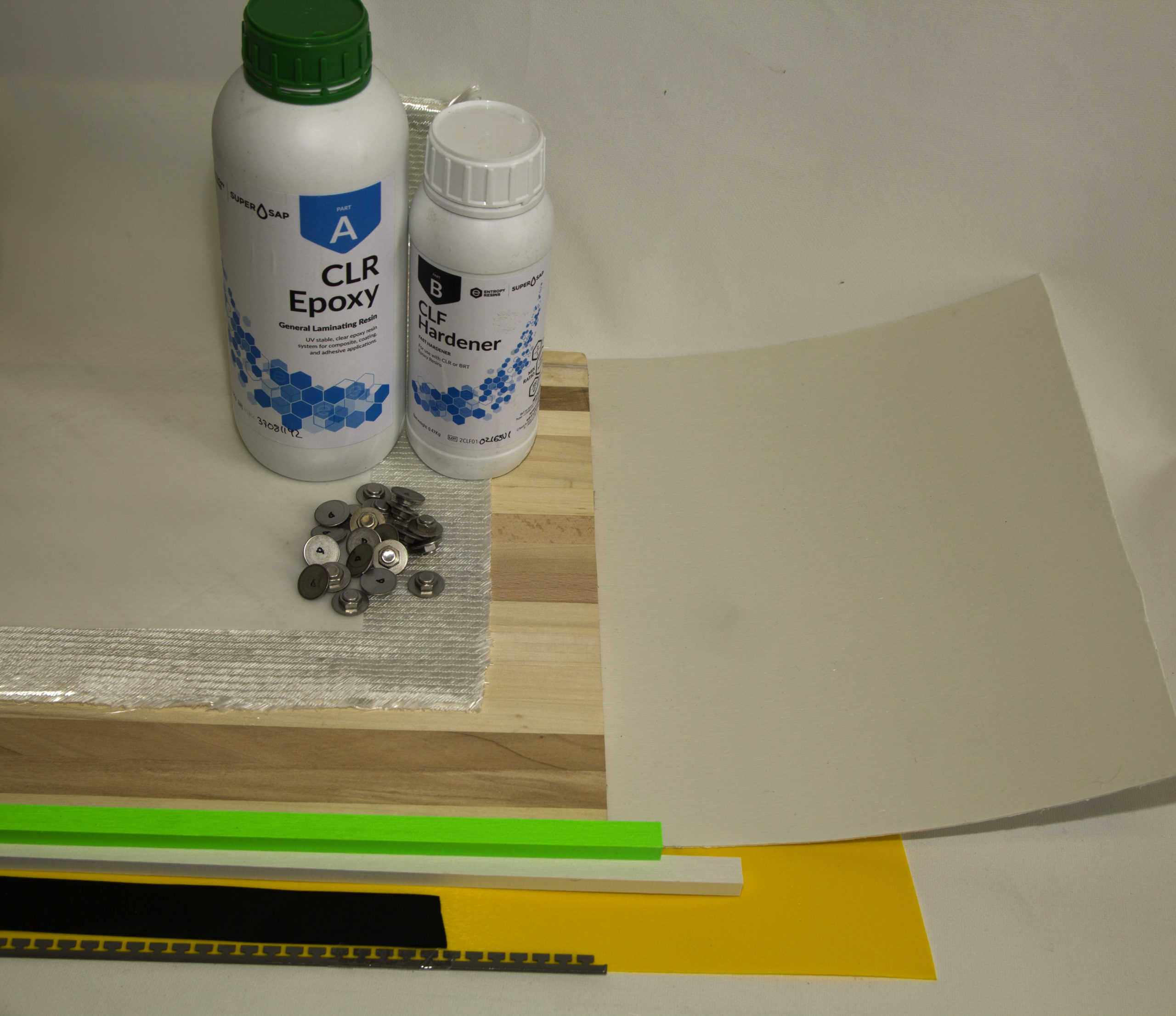

Snowboard DIY standard package kit to make your own snowboard.

All you need to build own Bamboo snowboard!

Read first how to work with the materials: https://www.junksupply.com/how-to-work-with-our-materials/

  • snowboard Bamboo , 1800 x 320 x 12mm
  • 25oz triaxial glass fabric or carbon/flax mix for great performance and light weight.
  • 24pcs m6 inserts,
  • 1.2L epoxy,
  • 4m of 25mm VDS,
  • 2 sidewalls of your choice
  • tip/tail insert filler
  • 1.8m topsheet and base of your choice
  • 3.6m steel edges.

Due to the nature of bamboo, it does not have loads of torsional stiffness, so it benefits from carbon stringers diagonally or carbon biax. You can add this separately for top and bottom also if you like.

We recommend you add one 100% alcohol wipe pr. sidewall at least, for cleaning and improved adhesion, read here.

SKU: N/A Category:

Description

Snowboard DIY standard package kit to make your own snowboard.

All you need to build own snowboard!

Item contains :

– 1 pcs snowboard Bamboo , 1800 x 320 x 12mm

– base + topsheet,

– 25oz triaxial glass fabric or carbon/flax mix for great performance and light weight.

– epoxy 1,2L,

– 4m 25mm VDS,

– 4m steel edges,

– 2 x sidewalls

– tip fill

– 24 inserts snb m6x1 (your choice of height)

Simulator example: splitboard simulate design example

If you need wood finish, you can get veneer here www.metz-furniere.de

1.5mm and 1.8mm ptex thickness only available in black!



Additional information

Weight 9 kg
Wood core

Bamboo wood core 1800 x 320 x 12mm (Skis/Snowboard)

Base type

IS 4400 1.2/330 BLACK extruded (2m Skis, 1.75m Snowboard), IS 4400 1.2/330 Bright YELLOW (2m Skis, 1.75m Snowboard), IS 6000 0.8/480mm CLEAR (2m Skis, 1.75m Snowboard), IS 7200/7500/CB 7115x 1.5/350mm BLACK (2m Skis, 1.75m Snowboard), IS7200 1.2/330mm BLUE (2m Skis, 1.75m Snowboard), IS 4400 1.2/320mm PINK (2m Skis, 1.75m Snowboard), IS 7200 1.2/330mm YELLOW (2m Skis, 1.75m Snowboard), IS440 1.2/320mm Soft ORANGE (2m Skis, 1.75m Snowboard), IS7200 1.2/320mm GREEN (2m Skis, 1.75m Snowboard), IS7200 1.2/325mm BLACK (2m Skis, 1.75m Snowboard), IS7200 1.2/330mm RED (2m Skis, 1.75m Snowboard), IS7200 1.2/330mm WHITE (2m Skis, 1.75m Snowboard), IS7500 1.2/320-330mm CLEAR (2m Skis, 1.75m Snowboard)

Topsheet (Skis 2m, Snowboard 1.75m, Kite/Wakeboard 1.5m)

ICP 2115/2117 TPU/ABS mat 320mm CLEAR, ICP 2115/2117 TPU/ABS mat 500mm CLEAR, ICP 4160 PBT 0.4/490mm mat white WHITE, ICP 8100 PA mat 0.50/350mm WHITE, ICP 8210 PA nylon brushed pi28 0.4/350mm CLEAR, ICP 2115/2117 TPU/ABS glossy 500mm CLEAR, ICP 4160 PBT glossy 320mm WHITE, ICP 8210 PA nylon glossy CLEAR, IS6000 Ptex mat 0.4mm/500mm CLEAR

Steel edges step thickness

0.9mm steel edges step thickness (Ski 8m, Snowboard 3.6m), 1.2mm steel edges step thickness (Ski 8m, Snowboard 3.6m), 1.5mm steel edges step thickness (Ski 8m, Snowboard 3.6m), 1.8mm steel edges step thickness (Ski 8m, Snowboard 3.6m)

Sidewalls (Ski 4 pcs., Snowboard/Kite/Wakeboard 2 pcs.)

ABS BLue, ABS bright green, ABS White, ABS Black, ABS bright Orange, ABS bright Yellow

Tip filler

ABS Black 2.5mm thick 700mm x 200mm, ABS Red-orange 2.5mm thick and 700mm long 140mm wide, ABS white 2.0mm thick 200mmx700mm, UHMWPE black 1,8mm thick 350x310mm

M6 Inserts (24pcs for Snowboard)

10mm, 6mm, 7mm, 8.5mm

VDS rubber tape

3.6m VDS black 13mm, 3.6m VDS black 25mm, 3.6m VDS natural/yellow 23mm

Epoxy Resin

Polar bear 850g resin + Polar bear 410g Hardener (Compression Slow (60C+)), Sei whale 850g Resin + Sei whale 410g Slow Hardener (Universal slow 40-50min)

Type of layup

Triaxial glass fabric, Carbon and Bcomp flax fabric

Fabric (must match selection of 'Type of Layup')

1.75m Bcomp flax Biaxial fabric 630mm/350g + 1.75m UD carbon fabric 300mm/130g, 1.75m Carbon biaxial fabric 625mm/300g + 1.75m UD Bcomp flax fabric 350mm/300g, Triaxial glass fabric 618gms (4m Skis, 3.5m Snowboards), Triaxial glass fabric 630mm/750gms (2m Skis, 1.75m Snowboards), Triaxial glass fabric 662g (4m Skis, 3.5m Snowboards)
