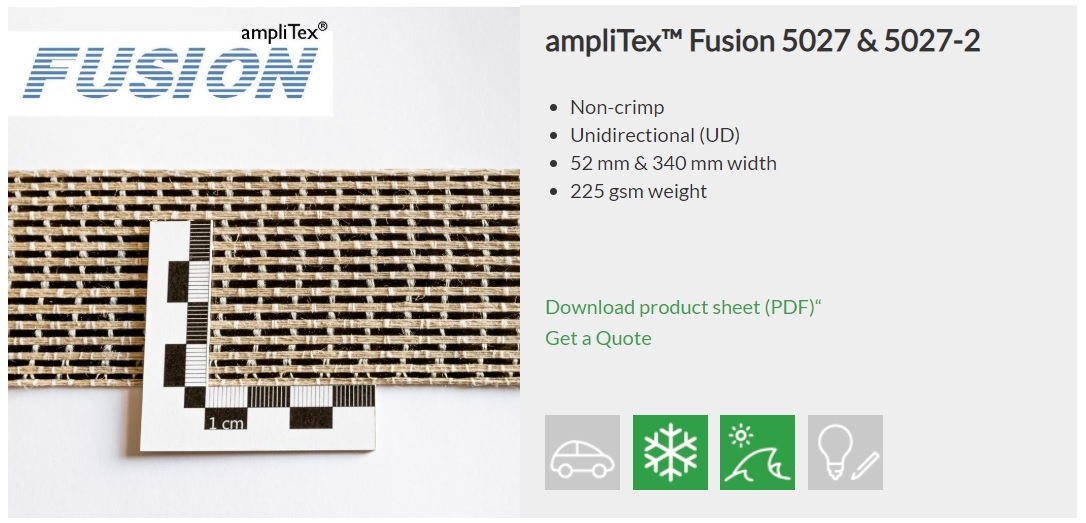

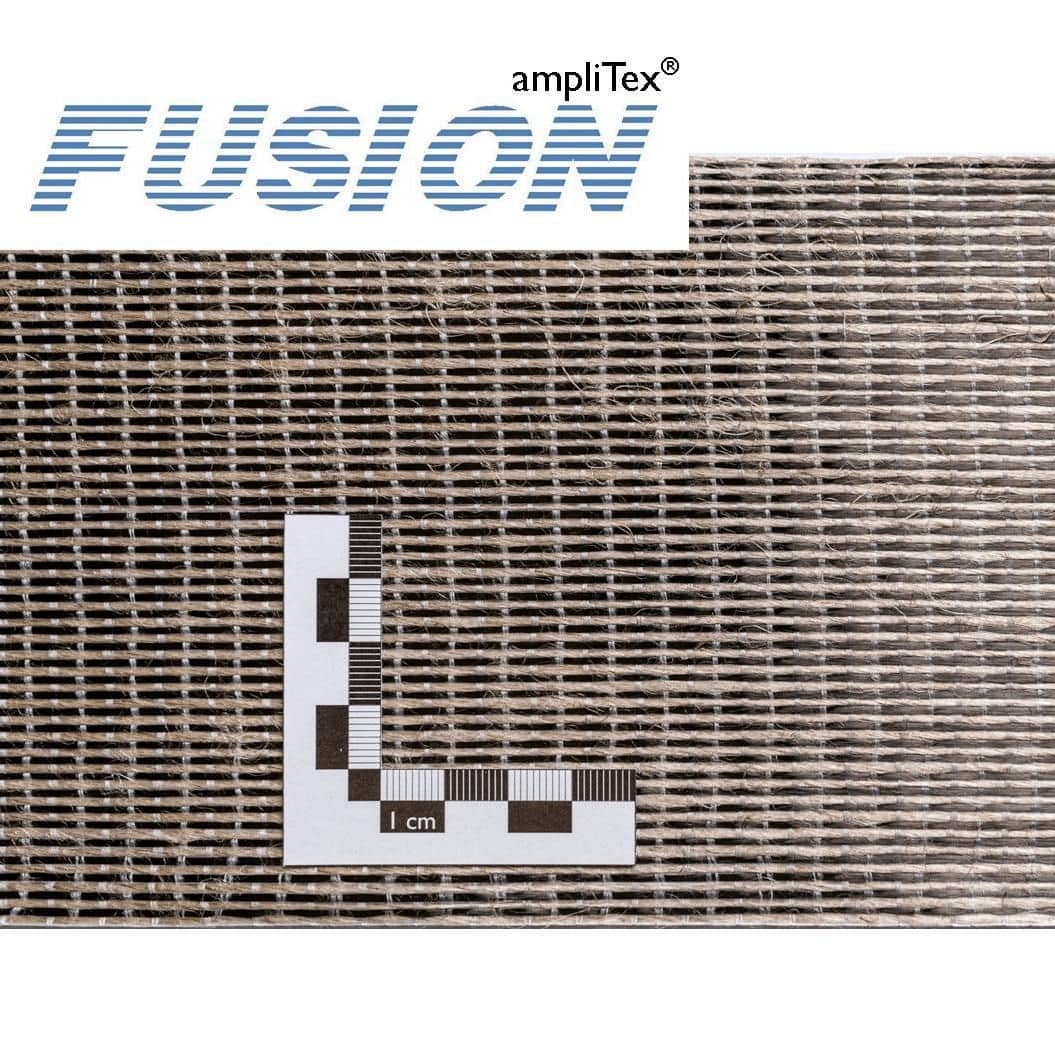

Bcomp ‘AmpliTex Fusion’ Fabric – Unidirectional (multiple weight)

2.8514.00 "incl. VAT"

Flax and carbon mix fabric, best of both worlds.

ampliTex flax-carbon UD fabrics, non-crimp, in multiple widths and weights.

170-225gms, 25-350mm wide.

price is pr. 1m length. If more is ordered then it is rolled as one piece.

Technical datasheet: t-flachs-5027-e

Flax parameters: Density: 1350, Y modulus: 58500

Carbon parameters: Density: 1700 Y modulus: 235000

See guide on how to find averaged parameters for simulation

Guide to the Simulator

Tip: Use glue to stick the amplitex to the core before layup to make it stay where you desire.

Fabric construction
Fibre type: Flax (EU)/ Carbon
Construction: UD tape
Fabric weight : select gsm
Ply construction
52% Carbon
48% Flax
Weft yarn
Textured polyester
Measurements
Standard width: select mm

DATA SHEET: amplitex_5027_tds

Note: Flax fiber swells slightly and thus absorbs more resin. A good idea is to mix about 50% more then with glass. So if for glass you use 45-50% of fabric weight, for flax use about 65-75% of fabric weight.  It also can catch some humidity, so its good idea to dry it a bit before layup. For pneumatic presses with 3 – 6 bar, extra resin is pushed out again so it will be ok.  In the case of vacuum presses, please be careful how much resin you apply.

Clear
SKU: N/A Categories: ,

Description

The fusion tape brings the best of two worlds: the very high stiffness of carbon and the light weight and damping of flax. Also both fibers have a very good compatibility, since they have similar thermal expansion coefficient and failure strain.

Price per meter.

Instructions: The flax fiber absorbs more resin.

Pneumatic presses with ~5  bar is recommended to make good laminate with minimum excess resin.

Vacuum press: follow this resin quantity recommendations: resin / (resin + fabric) = 60%
Spread the resin well with a roll on a flat surface or pour the epoxy on to the fabric and then make a roll out of it. Then let it soak for some minutes. Much easier than try to smear it out.

For simulation I suggest you try to use averaged value of density and Y-modulus.



Additional information

Weight 0.1 kg
Type

52mm wide, 225g/m2, 25mm wide, 170gms, 120mm wide, 170 g/m2, 340mm wide, 225g/m2
