€25.00 – €50.00 "incl. VAT"

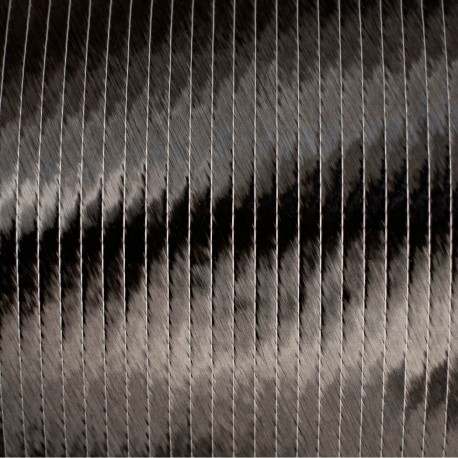

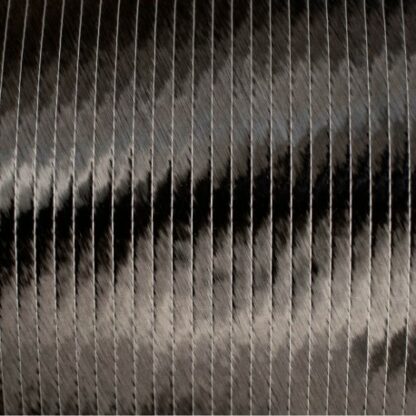

Biaxial carbon fabric, 300gms total in +/-45 degree direction.
ply +45 degree: 150gms
ply -45 degree:150gms
After laminating the white stitching should disappear.
pr. 1m length. If more is ordered then it is rolled as one piece.
Great product for light weight and hi-performing application. Combines well with UD carbon or with UD bcomp fabric.
Please simulate always first!
Remember that the bi-axial carbon +/-45 degrees, will give excellent torsion, however, it will contribute in stiffness both in length and width of your product.
price pr. meter!
300gms biaxial carbon
Total of 300gms in+/-45 degree.
Fabric perfect for use with UD bcomp fabrics or UD carbon fabric.
thickness 0.2mm
-45º Ply
| Weight | 0.4 kg |
|---|---|
| Width | 630mm wide, 300g, 1270mm wide, 300g |
Plain carbon fabric. Carbon offers stiff construction and looks amazing. It is also great for reinforceing or gaining additional pop/spring.
Thread pr cm2: 4×4
Plain weave
Width: 100 cm
Application:
Reinforcement fabric for modelling, motor sports, marine construction, and sporting equipment
If you order more then one piece, it will come in one single roll, uncut.
Flax and carbon mix fabric, best of both worlds.
ampliTex flax-carbon UD fabrics, non-crimp, in multiple widths and weights.
170-225gms, 25-350mm wide.
price is pr. 1m length. If more is ordered then it is rolled as one piece.
Technical datasheet: t-flachs-5027-e
Flax parameters: Density: 1350, Y modulus: 58500
Carbon parameters: Density: 1700 Y modulus: 235000
See guide on how to find averaged parameters for simulation

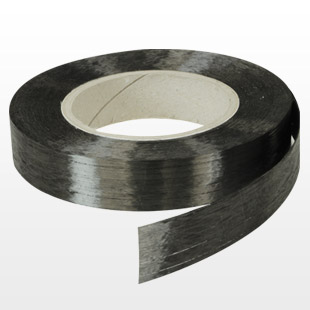

Uni directional – UD – 0 degrees carbon tape fabric.
weight is 130gms. 50-300mm wide
Carbon Heat Set Woven Unidirectionals are produced with unidirectional carbon fibres in the warp and very lightweight thermoplastic fibres in the weft. The thermoplastic fibres are fused to create a stable fabric that is very stable and easy to handle and cut. These fabrics are excellent for wet lay up and wet preg applications.
pr. 1m length. If more is ordered then it is rolled as one piece.
Fantastic fabric for improving your rides flex/stiffness, giving it extra pop or even making it more light weight.
This fabric can be combined with our Bi-axial carbon fabric to get a triaxial performance fabric.
Tip: Use glue to stick the carbon to the core before layup to make it stay where you desire.
